SPECIFICATIONS

Certification: CE

DIY Supplies: Electrical

Electronic: Yes

High-concerned chemical: None

Material: Other Metal

Model Number: 260W Laser Obstacle Removal Machines

Origin: Mainland China

Size: 50*40*30 CM

Style: Customized

Type: Laser Obstacle Removal Machines

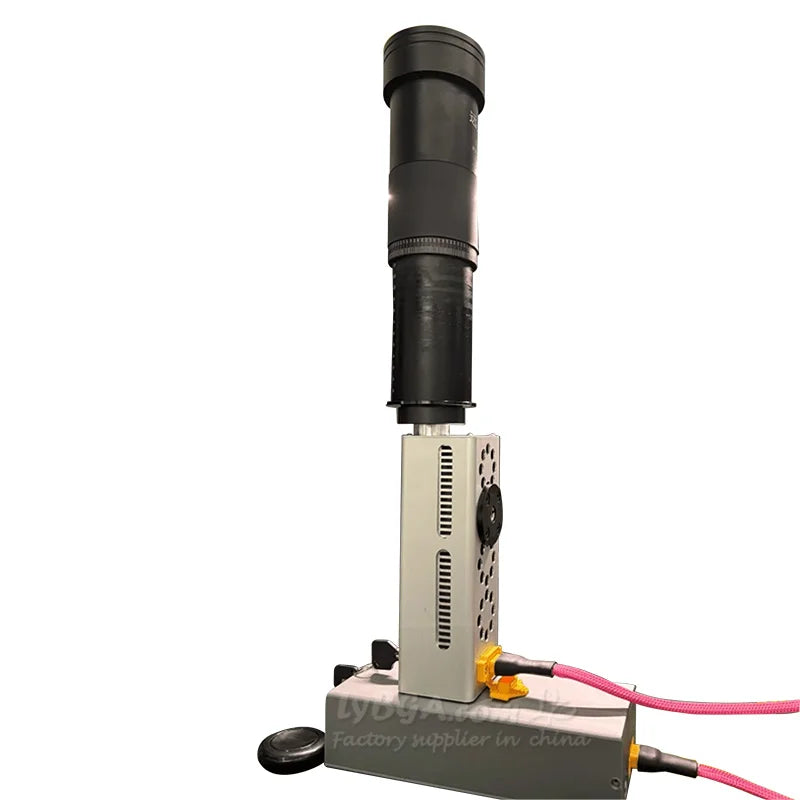

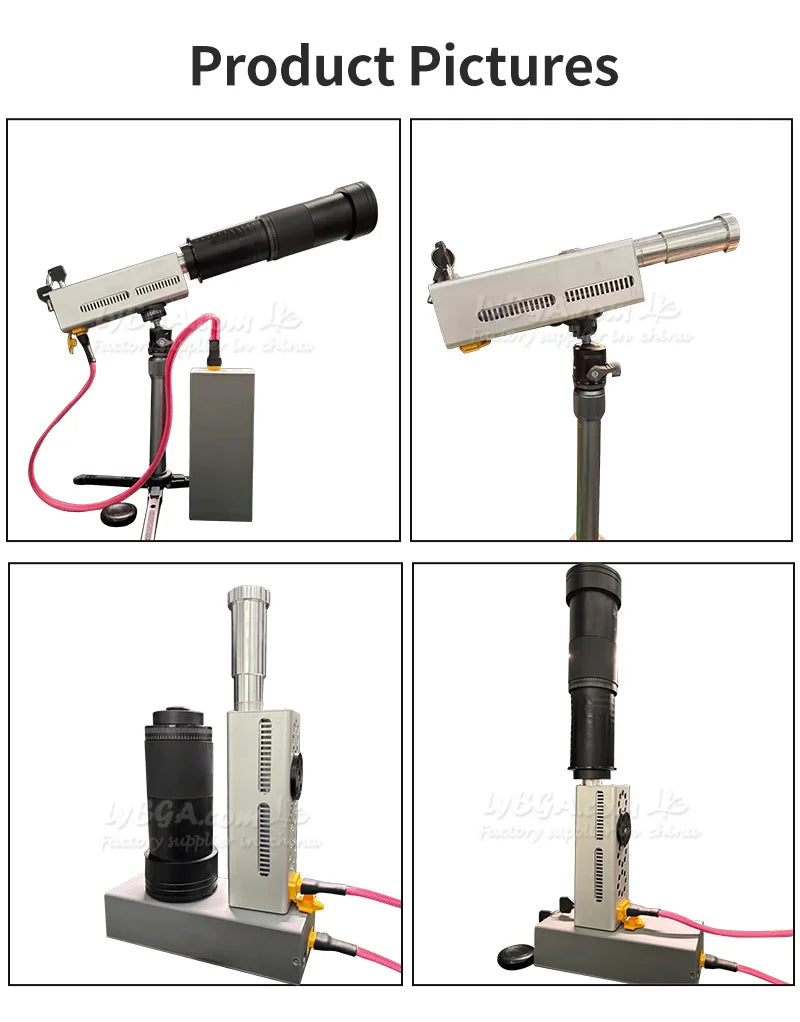

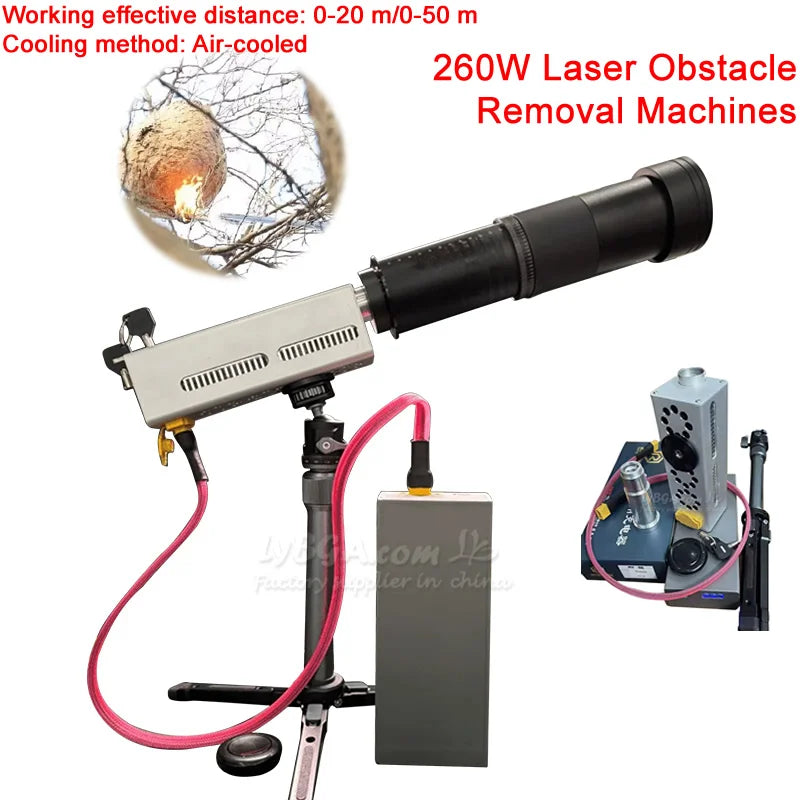

260W Laser Obstacle Removal Machines Customized Handheld Laser Retractable Lens Pump Source Laser Operating Range 0-20 meters 0-50 meters Removal of Obstacles at a Distance Combustible Paper Burning Wood Rough Cutting

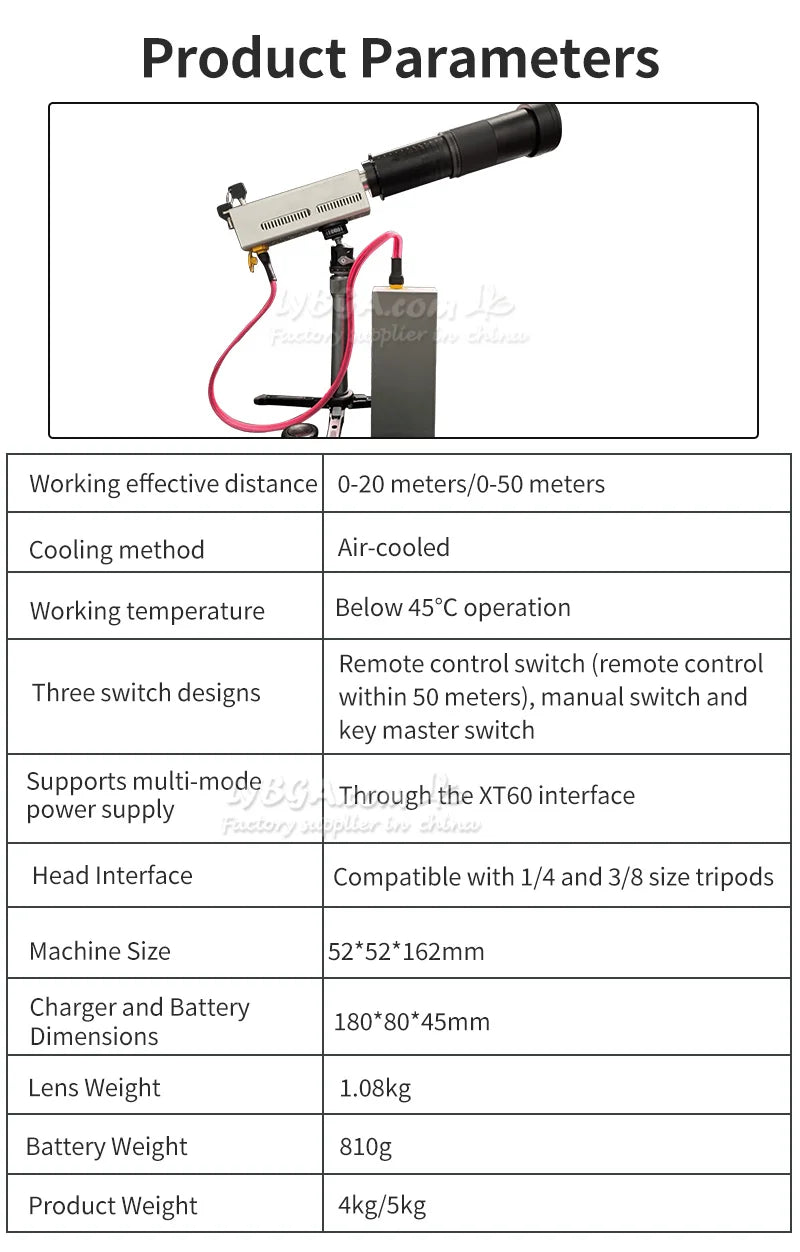

Product Parameters

RE:

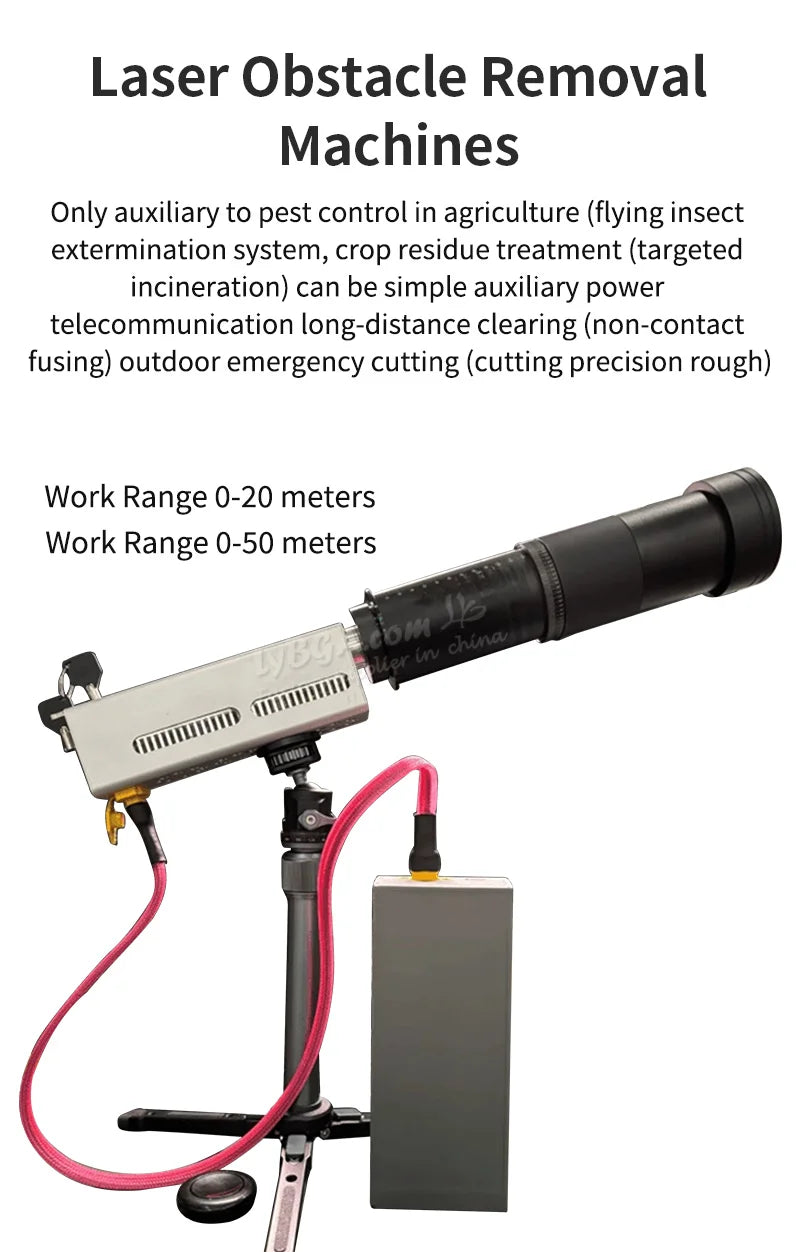

Application: Only assists in pest control in the agricultural field (flying insect killing system, crop residue treatment (fixed-point incineration)!!! It cannot be used as a professional industrial grade equipment and can only be used as a simple auxiliary for long-distance clearing of power and telecommunications (non-contact fuse) and outdoor emergency cutting (rough cutting accuracy), such as cleaning kites, bird nests, honeycombs, plastic bags, etc. on high-altitude power lines. Please do not compare it to hundreds of thousands or even millions of obstacle clearing devices, it is only used as an auxiliary tool.

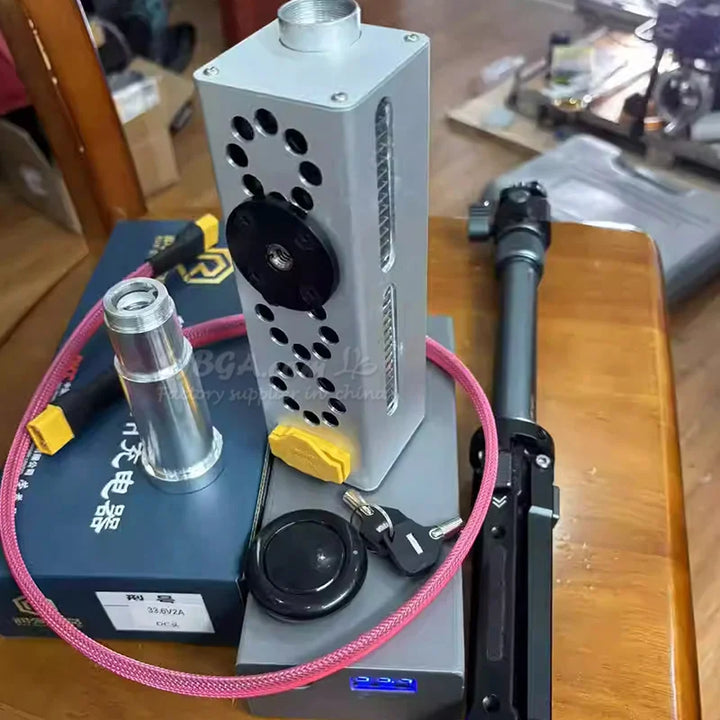

Packing list:

20 meters effective distance Package includes:

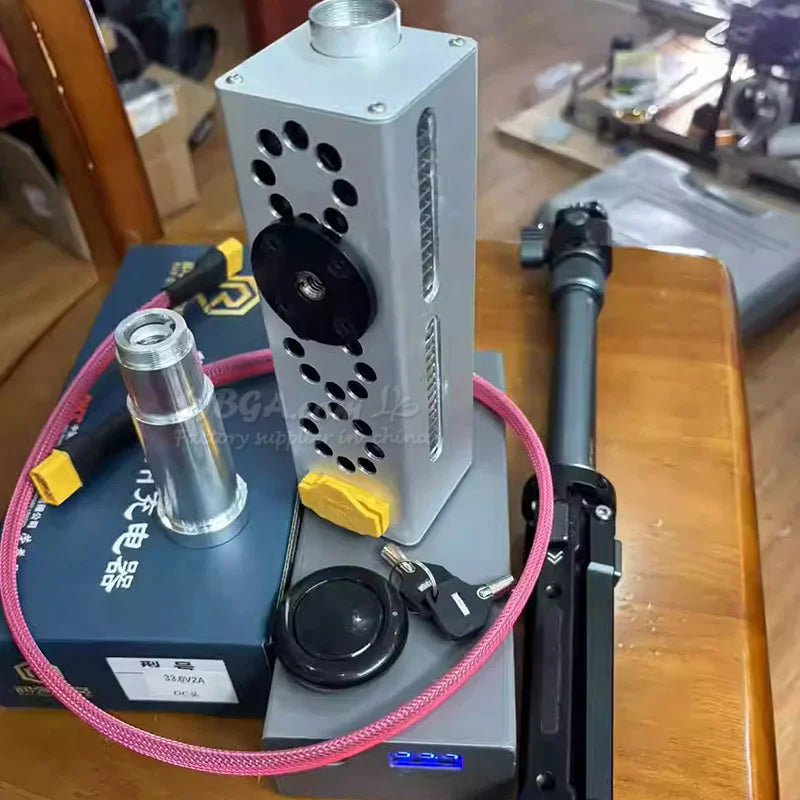

Laser Module*1, 10x lens*1, tripod*1, charger*1, battery*1, remote control*1, key*2, connecting cable*1(3. 32kg)

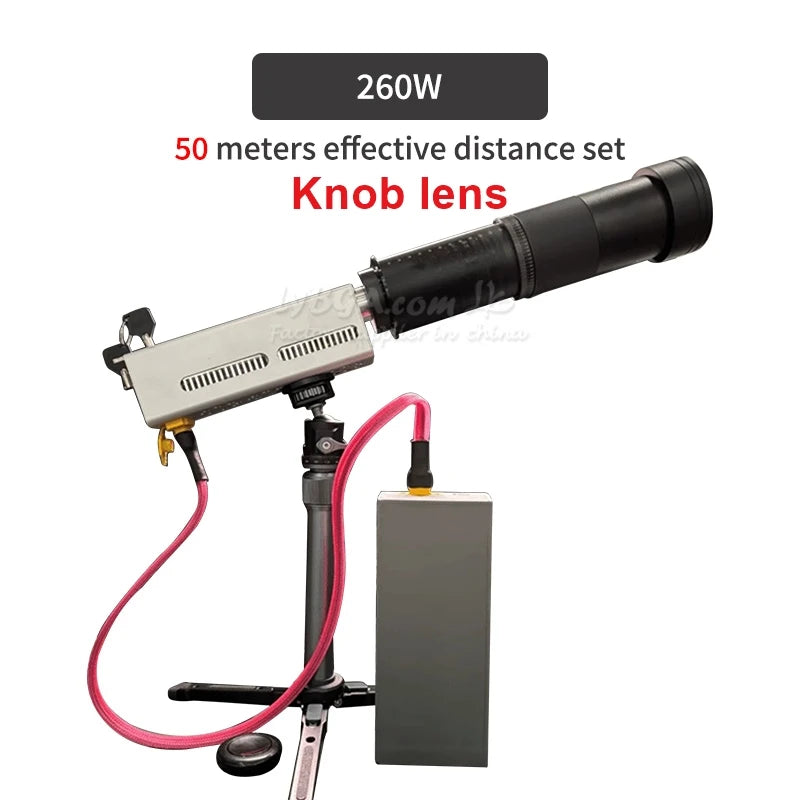

50 meters effective distance package includes:

Laser Module *1, 10x lens*1, 50x lens*1, tripod*1, charger*1, battery*1, remote control*1, key*2, connecting cable*1(4kg)

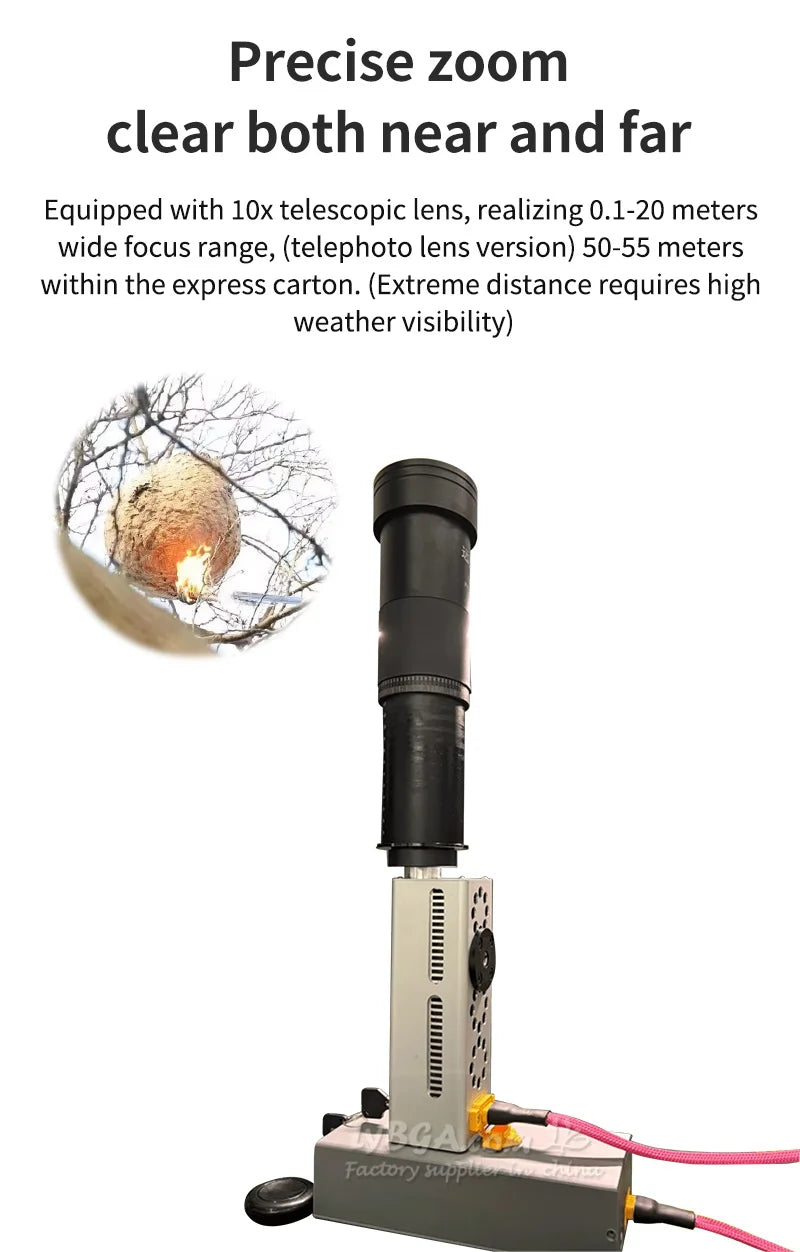

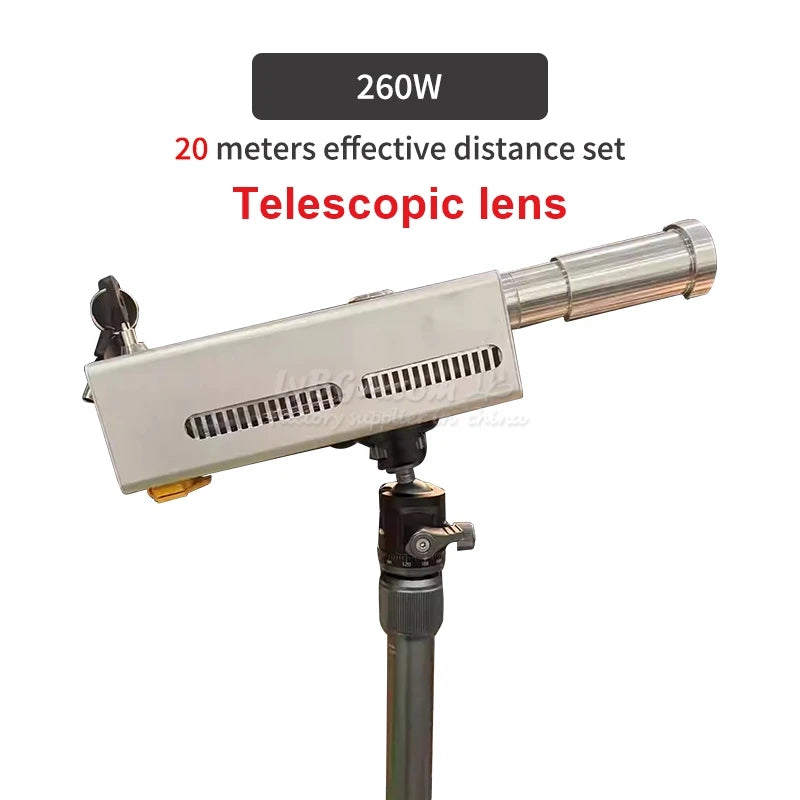

[Precise zoom, clear both near and far]

Equipped with 10x telescopic lens, realizing 0.1-20 meters wide focus range, (telephoto lens version) 50-55 meters within the express carton. (Extreme distance requires high weather visibility)

[Efficient Heat Dissipation, Long-lasting Stability]

Innovative triple-enhanced cooling system, dual heat pipes directly connected to the shell rapid temperature conduction, with dual heat sinks and high-performance thermally conductive silicone grease, supplemented by three large-area mute fan intelligent temperature control, to ensure that the device is not hot for a long time high load operation, stable output of excellent performance.

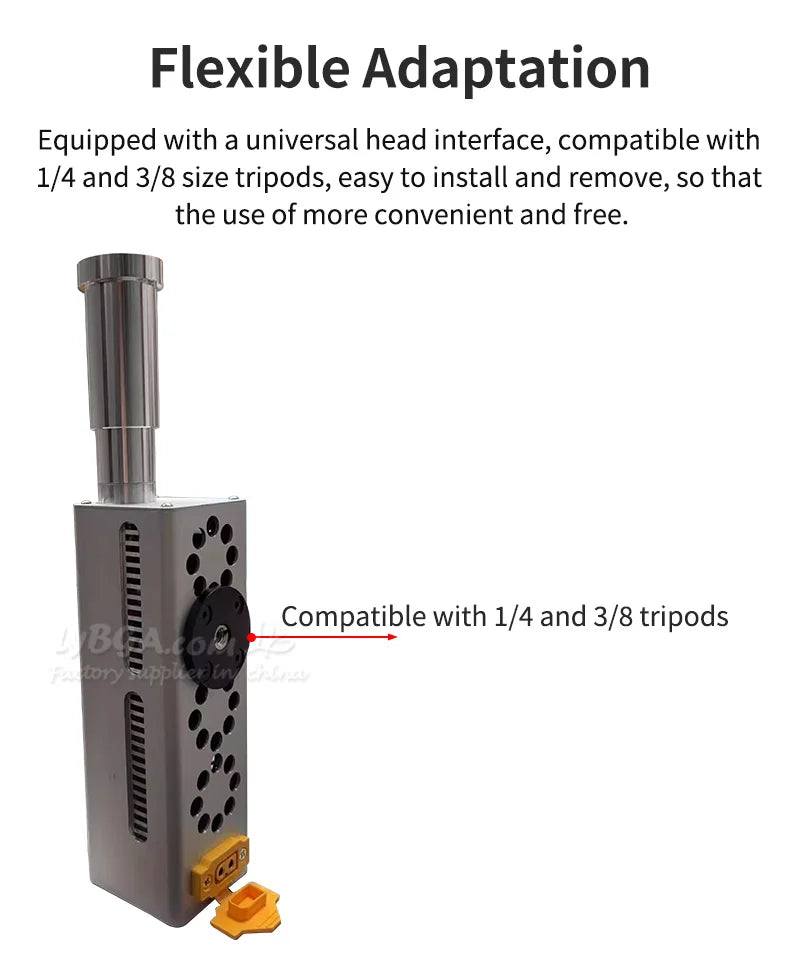

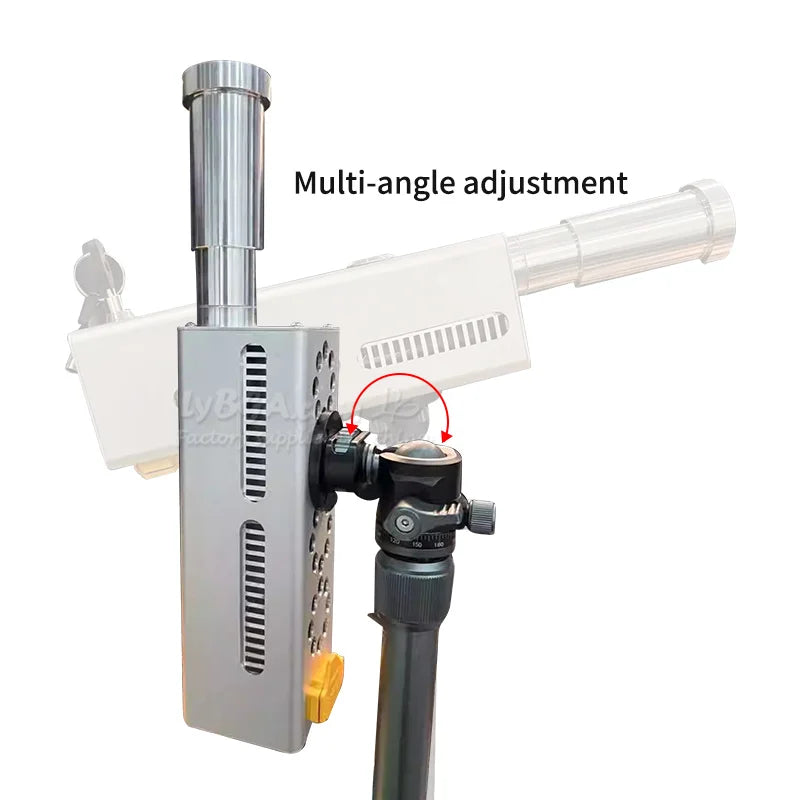

[Flexible Adaptation, Unlimited Expansion]

Equipped with a universal head interface, compatible with 1/4 and 3/8 size tripods, easy to install and remove, so that the use of more convenient and free.

[Split Power Supply, Worry-Free Continuity]

Split design, 33.6V built-in 8 strings of Samsung 50S 5000mA high-capacity batteries, through the XT60 interface to support multiple ways of power supply, to meet the needs of different scenarios of power. 60cm battery and host connecting cable can be customized according to the needs of (too long may affect the stability of the current), to adapt to diverse environments.

[Multi-mode control, switch at will]

Equipped with a triple switch design: hand-held point switch to achieve instant start; equipment remote control switch to support 50 meters remote control, the use of no need to be close to the body; key master switch to protect the safety of the equipment, multi-mode operation both convenient and safe, as much as possible in the control.

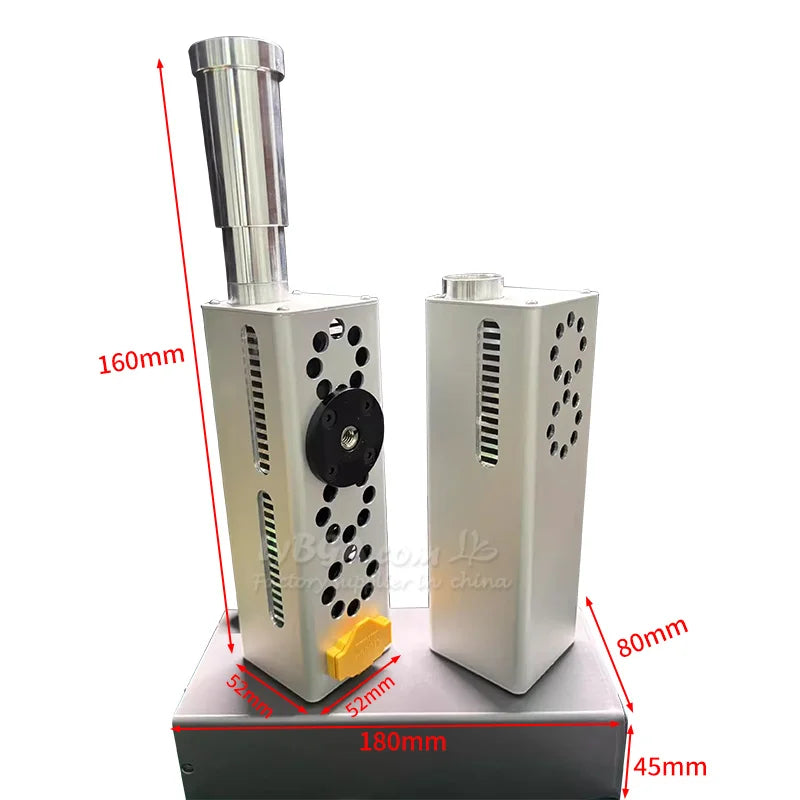

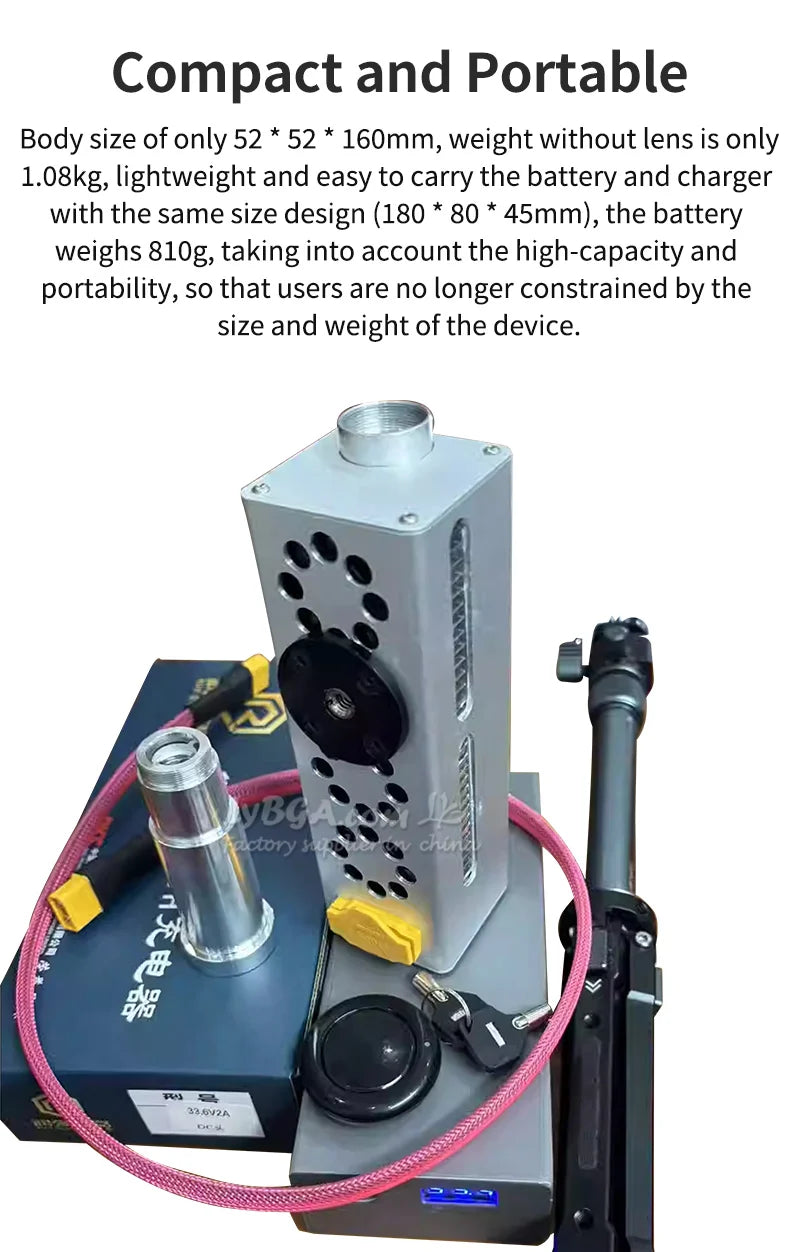

[Compact and portable, lightweight]

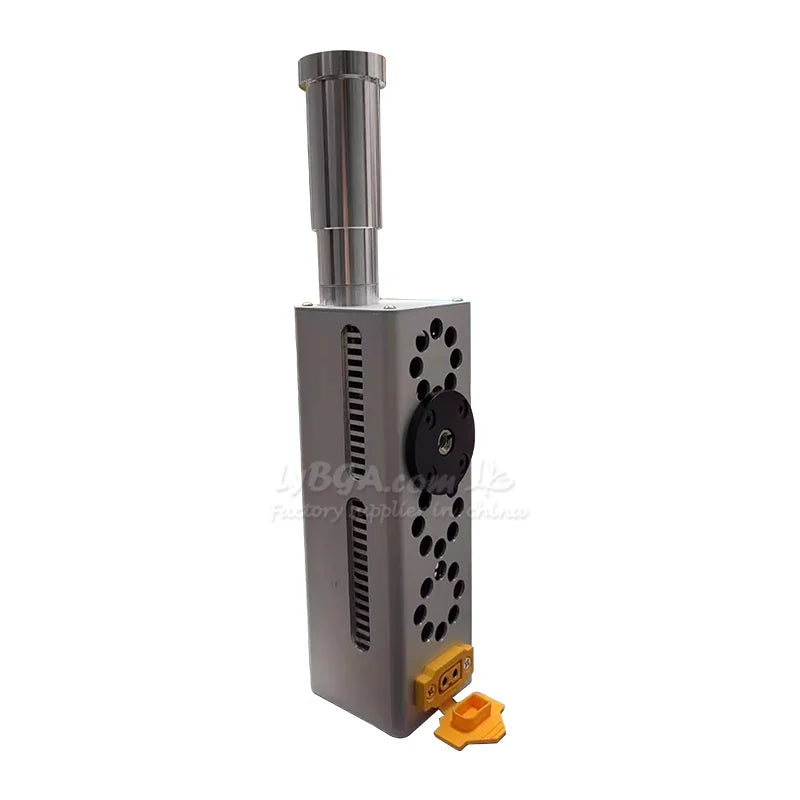

Body size of only 52 * 52 * 160mm, weight without lens is only 1.08kg, lightweight and easy to carry the battery and charger with the same size design (180 * 80 * 45mm), the battery weighs 810g, taking into account the high-capacity and portability, so that users are no longer constrained by the size and weight of the device.

Application Scenario Description:

Only to assist in pest control in the agricultural sector (flying insecticide systems, crop residue treatment (spot burning)).

crop residue treatment (targeted incineration)! !!! Cannot be used as a professional industrial-grade equipment, only simple auxiliary power telecommunication long-distance clearing (non-contact fusion) outdoor emergency cutting (rough cutting precision)

Internal configuration temperature control protection mechanism:

The test continuous press one - twenty seconds without triggering the temperature control (internal pump source working temperature reaches 45 ° will self-start self-power-off, to be able to continue to use the temperature drop) because the pump source working temperature of more than 45 ° for a long period of time will be light failure, or even burned out. So air-cooled equipment must be added to this protection
